Do you need to power a project with 12V and 5V from one power supply? The ATX power connector breaks out the standard 4-pin computer peripheral port for your 12V and 5V devices! Once you have chosen a power supply (whether it be an ATX power supply or the included 12V/5V wall adapter), you're ready to give your project some life! This kit has everything you need to solder together an ATX breakout and screw terminals for powering your project directly or pumping power into a breadboard.
ATX power supplies usually have a number of power connectors available to power components for a desktop computer. One of these connectors is the 4-pin power connector, which is intended to power 12V and 5V computer peripherals (such as disk drives). Depending on the manufacturer of the power supply, the quantity of each connector can vary. If you want to easily grab some juice for your project from this connector, you'll need to connect the breakout board to this port.
Note: Since this product is a kit, assembly and a basic knowledge of soldering will be required. The ATX power connector breakout does not come pre-assembled. Only the pin next to 5V is grounded. The pin next to 12V is not connected (NC). Please refer to the picture of the bottom of the unit for more information. The AC cable for this is included and works with 100-240VAC inputs via a 2-prong style plug.
Get Started with the ATX Power Connector Breakout Guide
Includes:

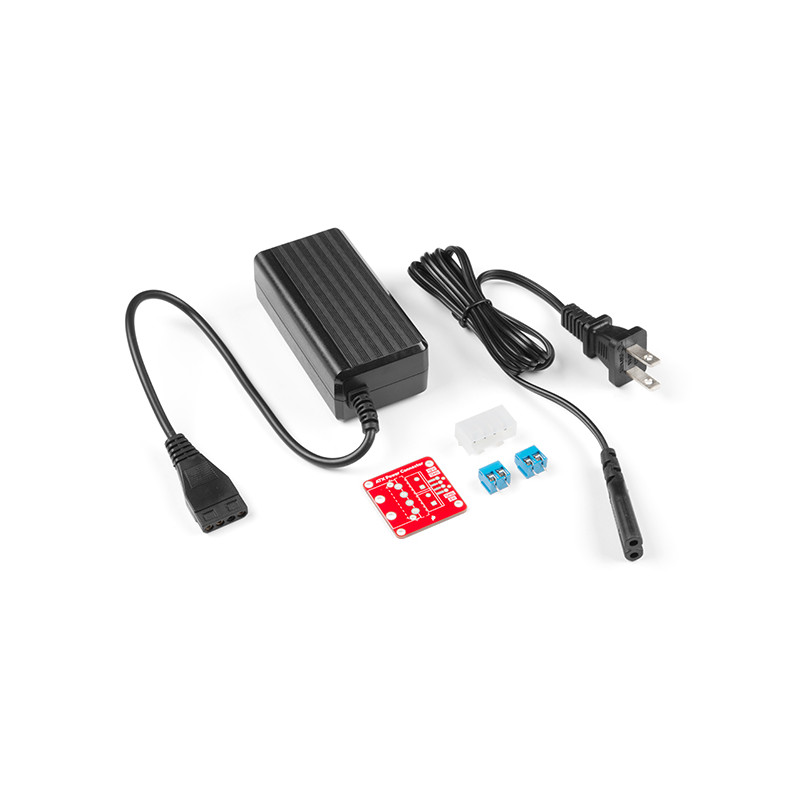

1x SparkFun ATX Power Connector Breakout Board
1x ATX Right Angle Connector - PTH 4-pin
2x 2-Pin Screw Terminals - 5mm Pitch
1x Power Supply - 12V/5V
