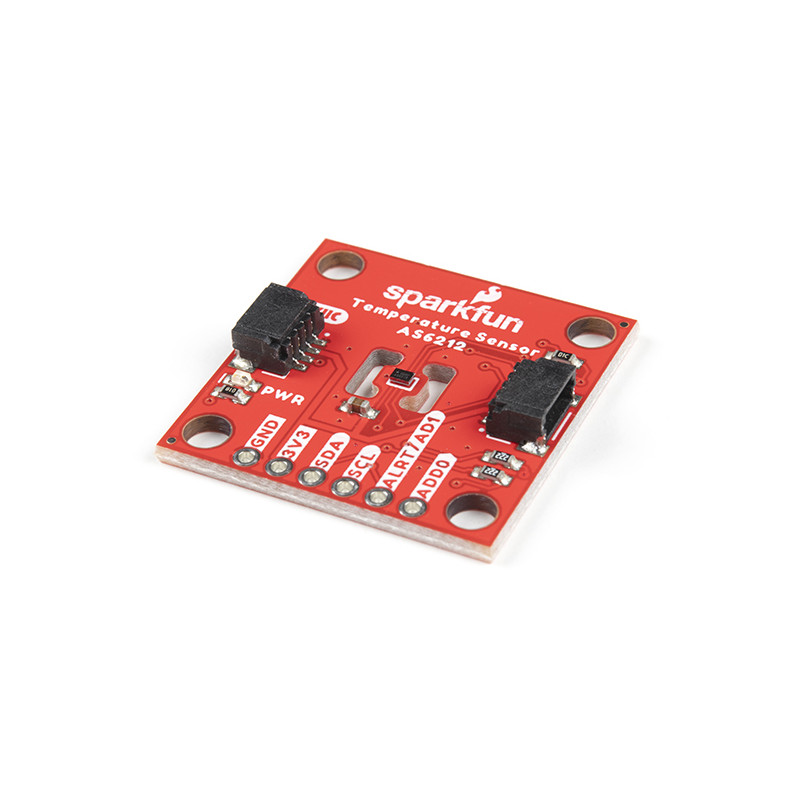

This SparkFun Qwiic Digital Temperature Sensor Breakout provides a combination of high temperature accuracy with excellent low power consumption using the AS6212 digital temperature sensor from ams AG. The sensor measures temperature data up to ±0.2°C accuracy over a wide range (-40°C to +125°C) and consumes an average of 6µA in normal operation (0.1µA in standby). The AS6212 communicates via I2C and has eight available I2C addresses selected by a pair of solder jumpers on the board. The breakout routes the I2C interface to a pair of Qwiic connectors to work with our plug-and-play Qwiic Ecosystem but also routes the bus and other pins to a standard 0.1"-spaced PTH header for users who prefer a soldered connection.
The AS6212 features an alert output to trigger when recorded temperature data crosses user-designated thresholds. The low and high values make it perfect to monitor systems that must remain in a specific temperature range. Along with the alert pin, the AS6212's sleep mode works with a single-shot temperature measurement to wake the device, take a single reading and then return to sleep mode for extreme low-power/battery-powered temperature measurement projects.
The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can?t hook it up wrong.
Get Started with the AS6212 Digital Temperature Sensor Guide
