Kit Parti in CNC Voron2.4 – Chaoticlab

Il kit di componenti CNC Voron 2.4 di Chaoticlab offre la possibilità di installare guide lineari MGN12 o MGN9 con una precisione e resistenza superiori.

Le parti incluse, resistenti all'usura e dotate di collegamenti cuscinetto, presentano un design privo di guarnizioni che semplifica notevolmente l'installazione.

Inoltre, il kit dispone di fori di montaggio dedicati per consentire l'installazione del BL-Touch.

Caratteristiche principali del Voron CNC Parts Kit di Chaoticlab:

• Lavorato a CNC con alta precisione
• Adatto a guide lineari MGN12 e MGN9
• Materiale di produzione: alluminio
• Resistenti all’usura
• Montaggio semplice

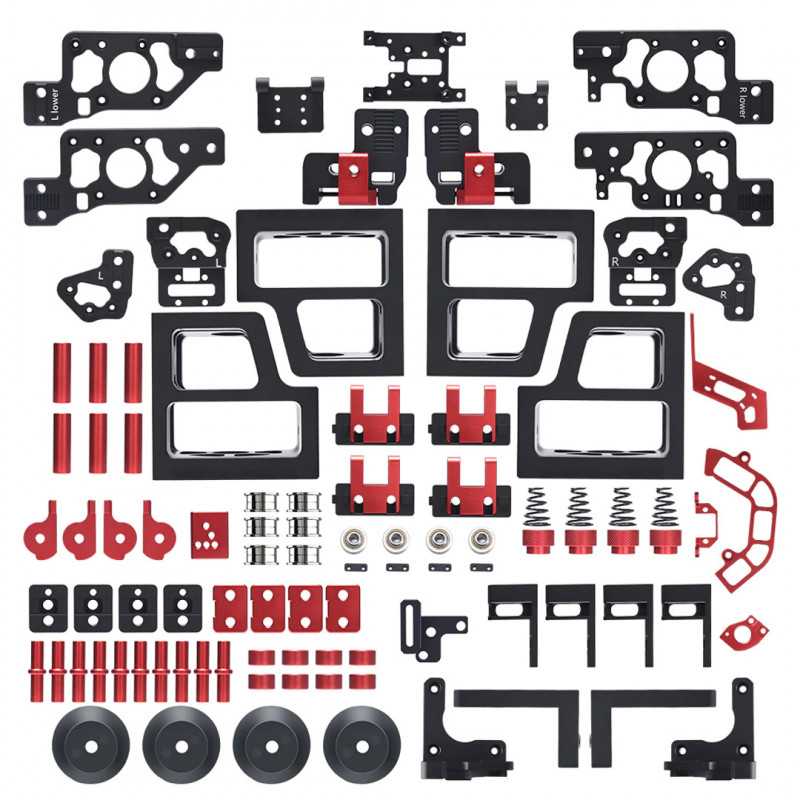

La confezione contiene: 1 x Kit Parti in CNC Voron2.4 – Chaoticlab

In particolare ecco la lista dei singoli componenti presenti:

1 x Drive Frame Upper Left

1 x Drive Frame Lower Left

1 x Drive Frame Upper Right

1 x Drive Frame Lower Right

1 x XY Joint Left Upper

1 x XY Joint Right Upper

1 x XY Joint Left Lower

1 x XY Joint Right Lower

1 x Front Idler Left Upper

1 x Front Idler Left Lower

1 x Front Idler Right Upper

1 x Front Idler Right Lower

1 x Tensioner Left

1 x Tensioner Right

1 x X Carriage Frame

1 x X Carriage Block A (per MGN9H)

1 x X Carriage Block B (per MGN9H)

1 x X Endstop Spacer

1 x M1 x2 Cable Protector Bracket

1 x Universal Drag Chain Bracket

1 x XY Cable Chain Bridge

1 x Cable Cover

1 x BLtouch Bracket

2 x Z Belt Drive A

2 x Z Belt Drive B

2 x Z Tensioner Bracket A

2 x Z Tensioner Bracket B

2 x Z Tensioner A

2 x Z Tensioner B

4 x Z Belt Clip Upper

4 x Z Joint Upper

4 x Z Joint Lower

2 x Z Motor Mount A

2 x Z Motor Mount B

2 x Belt Tensioner A

2 x Belt Tensioner B

10 x Stand Off 2x5x23mm

6 x Stand Off M3x7x23mm

8 x Stand Off 5x8x4,5 mm

4 x M5 Knurled Nut

4 x Microswitch Nut

4 x PB5 Bearing

12 x F625 Bearing

4 x Conical Spring

16 x M5 Shim

4 x Rubber Foot

60 x Drop-in T-nut, M3 (2020)

60 x Drop-in T-nut,, M5 (2020)

4 x Hexagon Bolt M5x40

2 x Socket Head Cap Screw (SHCS) M5x38

5 x Socket Head Cap Screw (SHCS) M5x22

10 x Socket Head Cap Screw (SHCS) M5x14

3 x Socket Head Cap Screw (SHCS) M3x36

10 x Socket Head Cap Screw (SHCS) M3x32

15 x Socket Head Cap Screw (SHCS) M3x28

5 x Socket Head Cap Screw (SHCS) M3x20

15 x Socket Head Cap Screw (SHCS) M3x16

4 x Socket Head Cap Screw (SHCS) M3x14

2 x Socket Head Cap Screw (SHCS) M3x10

30 x Socket Head Cap Screw (SHCS) M3x6

6 x Socket Head Cap Screw (SHCS) M2x10

10 x Button Head Cap Screw (BHCS) M5x30

40 x Button Head Cap Screw (BHCS) M5x16

30 x Button Head Cap Screw (BHCS) M5x10

100 x Button Head Cap Screw (BHCS) M3x8

14 x Flat Head Countersunk Screw (FHCS) M3x6 (FHCS)

10 x High Strength Friction Grip Bolt M3x3
