Version 1 of this pH sensor supports RS485 protocol and 4~20mA analog current, which is now retired, and replaced by this current one: Version 2, supporting RS485 protocol and 0~2V analog voltage.
This Industrial pH Sensor comes in two versions. The main difference is in the cable connector. Please choose the version that best suits your needs:
(1) Version A1B: with a waterproof aviation connector. This version saves you time in deployment as you won't have to use screws to connect the cable to the data logger. And it can be used with SenseCAP Sensor Hub 4G Data Logger instantly with ease.
(2) S-pH-01A: with hook-up wires.
Note
Please send an email to sensecap[at]seeed[dot]cc to request any technical support for this product.
Features
High performance: high accuracy, fast response, good repeatability
Universal protocol: MODBUS RS-485 or 4~20mA current
Wide-range power supply: 3.6V ~ 30V
Robustness: suitable to be immersed in soil or water for a long time
Maintainance-Free: advanced junction design, no clogging
Durable: anti-corrosion, automatic temperature compensation
User-friendly: Easy to install and integrate
A pH meter measures the hydrogen-ion activity in water-based solutions, indicating its acidity or basicity expressed as pH. (Wikipedia: pH Meter). pH level is an important indicator in many scenarios, especially in monitoring soil conditions and water quality. A pH sensor is widely used in farming, gardening, hydroponics, aquaponics, swimming pools and spas, sewage treatment, education, environmental monitoring, and many other applications.

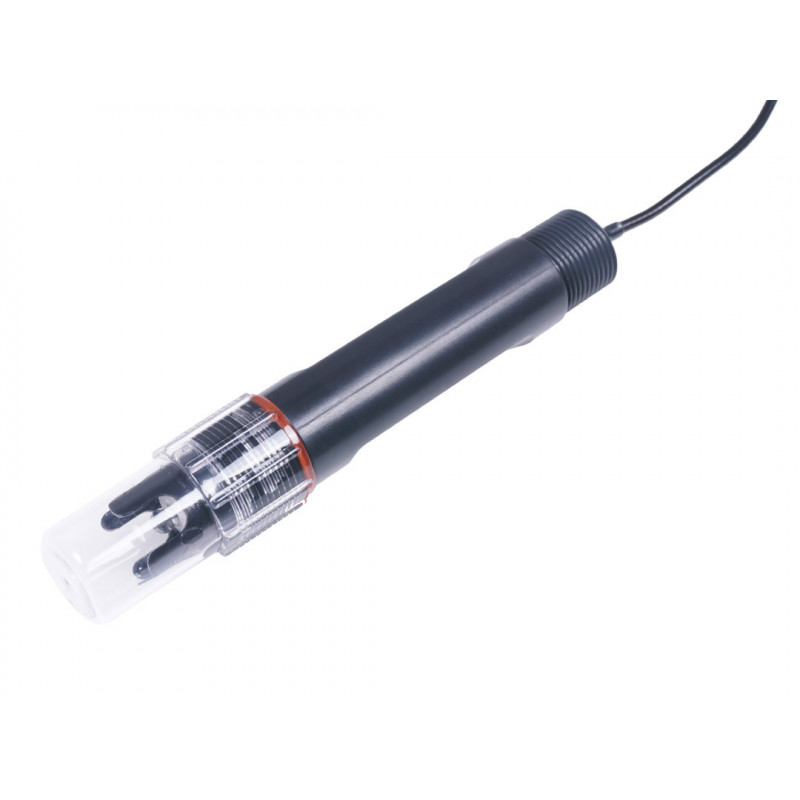

This pH sensor (S-pH-01A) is designed with industry standards. It adopts international advanced solid dielectric and large-area polytetrafluoroethylene liquid junction, which is not easy to block and convenient for maintenance. It's designed with ATC (automatic temperature compensation), making sure the data is accurate regardless of the temperature changes. This pH Sensor is IP65 rated, waterproof in a tight seal, capable of withstanding long-term constant use in professional application scenarios.
This pH Sensor comes with a MODBUS-RTU RS485 serial communications protocol or 4~20mA current output. It can be easily connected to and integrated with other devices such as data-loggers, controllers, and displays, etc. This cost-effective pH sensor features low-power consumption, compact size, portability, high integration, making it widely applicable in both indoor and outdoor environments.
Specifications
pH
Range 0 ~ 14pH
Accuracy ± 0.1 pH
Resolution 0.01 pH
General Parameters
Product Model S-pH-01A
Output Interface Analog Voltage 0-2V (Output resistance ~0ohm) RS-485 MODBUS-RTU
Power Supply 3.9-30V/DC 3.9-30V/DC
Power Consumption 35mA@24V DC 35mA@24V DC
Start-up time < 2 seconds
pH Measurement
High impedance and isolated input;
Range: 0 - 14PH,
Resolution: 0.01PH,
Accuracy: +/- 0.1PH;
Can be used for a solution or semi-solid substrate
Temperature Measurement
Range: - 40~80°C,
Resolution: 0.1°C,
Accuracy: +/-0.5°C
IP Rating
Electrode: IP68;
Transmitter: IP65
Operating Temperature -40? ~ 85?
Installation
Electrode: 3/4"NPT screw threads;
Transmitter: Mounting hole
Cable Length
Power and Signal Cable:2 meters (Customizable)
Electrode Cable: 5 meters
Dimension
Electrode: Width*Diameter 160*30mm; 3/4"NPT screw threads
Transmitter: 140mm*65mm*50mm
Applications
Agriculture: greenhouse, aquaponics, hydroponics, and crop Plantation, etc.
Animal Husbandry: pasture, grassland, and meadow
Forestry and Horticulture
Sewage Treatment
Swimming Pools and Spas
Scientific Experiments
Educational Projects
Other environmental monitoring scenarios
Wiring Diagram
Note
Please refer to the user manual for more details about the wiring diagram.
Probe Dimensions
