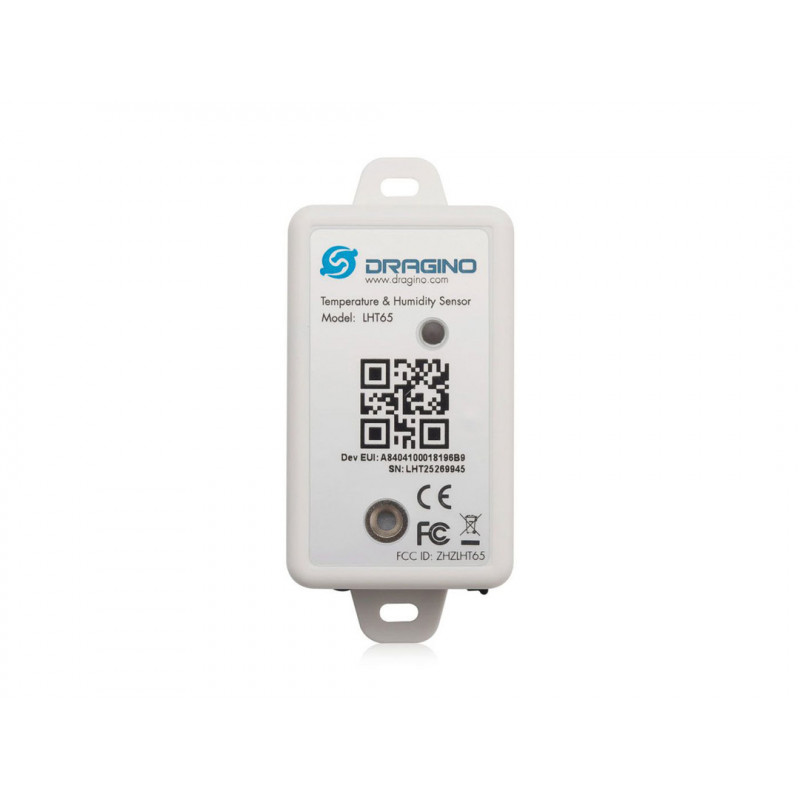

The Dragino LHT65 Temperature & Humidity sensor is a Long Range LoRaWAN Sensor. It includes a built-in SHT20 Temperature & Humidity sensor and has an external sensor connector to connect to external sensors such as Temperature Sensor, Soil Moisture Sensor, Tilting Sensor etc .
The LHT65 allows users to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, building automation, and so on.
LHT65 has a built-in 2400mAh non-chargeable battery which can be used for more than 10 years*.
LHT65 is full compatible with LoRaWAN v1.0.2 protocol, it can work with standard LoRaWAN gateway.
LHT65 has 3200 data records with datetime which can be retrieved with datetime for further analyze.
Features
LoRaWAN Class A protocol
Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
AT Commands to change parameters
Remote configure parameters via LoRaWAN Downlink
Firmware upgradable via program port
Built-in 2400mAh battery for more than 10 year use.
Built-in Temperature & Humidity sensor
Optional External Sensors
Tri-color LED to indicate status
3200 set sensor record with time stamp
Applications
Wireless Alarm and Security Systems
Home and Building Automation
Automated Meter Reading
Industrial Monitoring and Control
Long range Irrigation Systems,etc.
Package Includes
1 x LHT65
1 x DS18B20 Temperature Sensor
1 x Program Cable.
Dimensions and Weight
Device:
Size:135 x 70 x 30 mm/pcs
Weight: 105g
Package:
Size:145 x 80 x 50 mm/pcs
Weight: 170g
