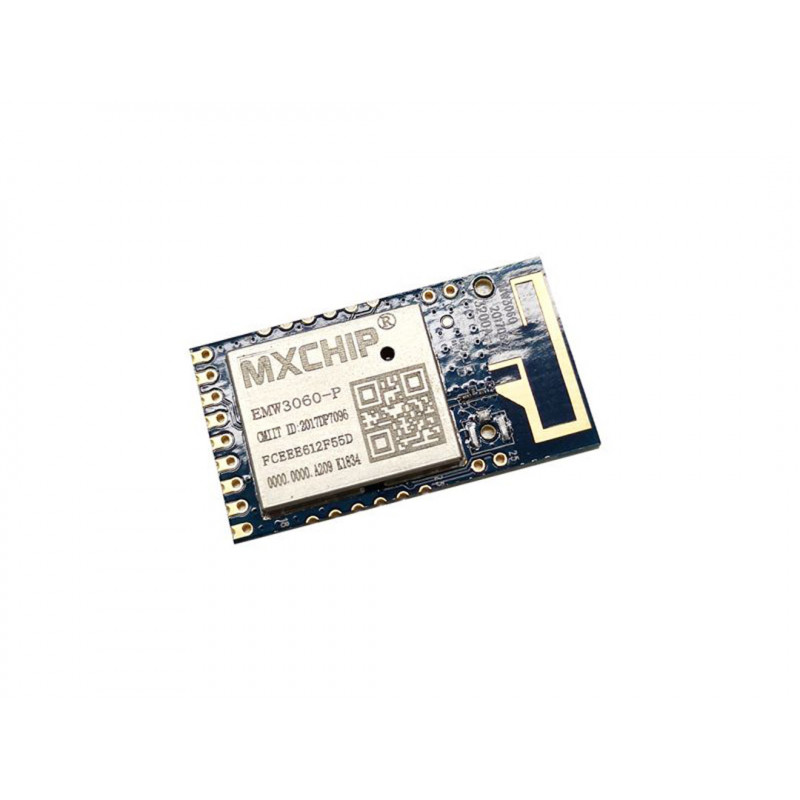

EMW3060 is a cost-effective embedded Wi-Fi module released by MXCHIP with high integrating ARM9,WLAN MAC/Baseband/RF. Maximum frequency 120MHz with 256KB SRAM and 2MB FLASH. Power supply is DC 3.3V. Mounting mode is LGA SMT or DIP(Dual In-line Package). Peripherals: 2xUART / 1x SPI /2x I2C / Up to 15 GPIOs.
Hardware diagram is shown below with four main parts:
ARM9 main core
WLAN MAC/BB/RF/ANT
Peripherals
Power management
With:
ARM9 CPU with 120MHz maximum frequency and 256KB SRAM and 2MB FLASH. Support high speedUART, I2C, SPI and multi-GPIO.
2MB SPI Flash is used for custom firmware development
Support PCB antenna and IPEX
Input voltage: DC 3.3V
Features
Support 802.11b/g/n, integrate ARM9, WLAN MAC/Baseband/RF
256KB RAM/ 2MB FLASH
Working Voltage: DC 3.0-3.6V
Maximum transmission rate up to 72.2 Mbps with 20 MHz bandwidth.
Wi-Fi Features
- Support 802.11b/g/n?HT-40
- Support Station, Soft AP, Station+Soft AP
- Support EasyLink?Alink?Joinlink
Antenna: PCB or IPX (Optional)
Peripherals?
- 2x UART
- 2x I2C
- 1x SPI
- 1x SDIO
- 1x JTAG
Up to 15GPIOs
Operating Temperature?-20? to +85?
Application
Intelligent lighting
Intelligent Transportation
Smart Home Application
industrial automation
Intelligent Security
